Secondary structure drawings
Secondary structure drawings are a standard and intuitive way to visualize secondary structures. It is also a useful way to visualize sequence annotations and per-nucleotide and inter-nucleotide data in the context of a secondary structure. RNAvigate will not make the layout for you, but it will accept file formats from StructureEditor, R2DT, VARNA, XRNA, and FORNA.
[1]:
import rnavigate as rnav
from rnavigate.examples import rnasep_1, rnasep_2, rnasep_3

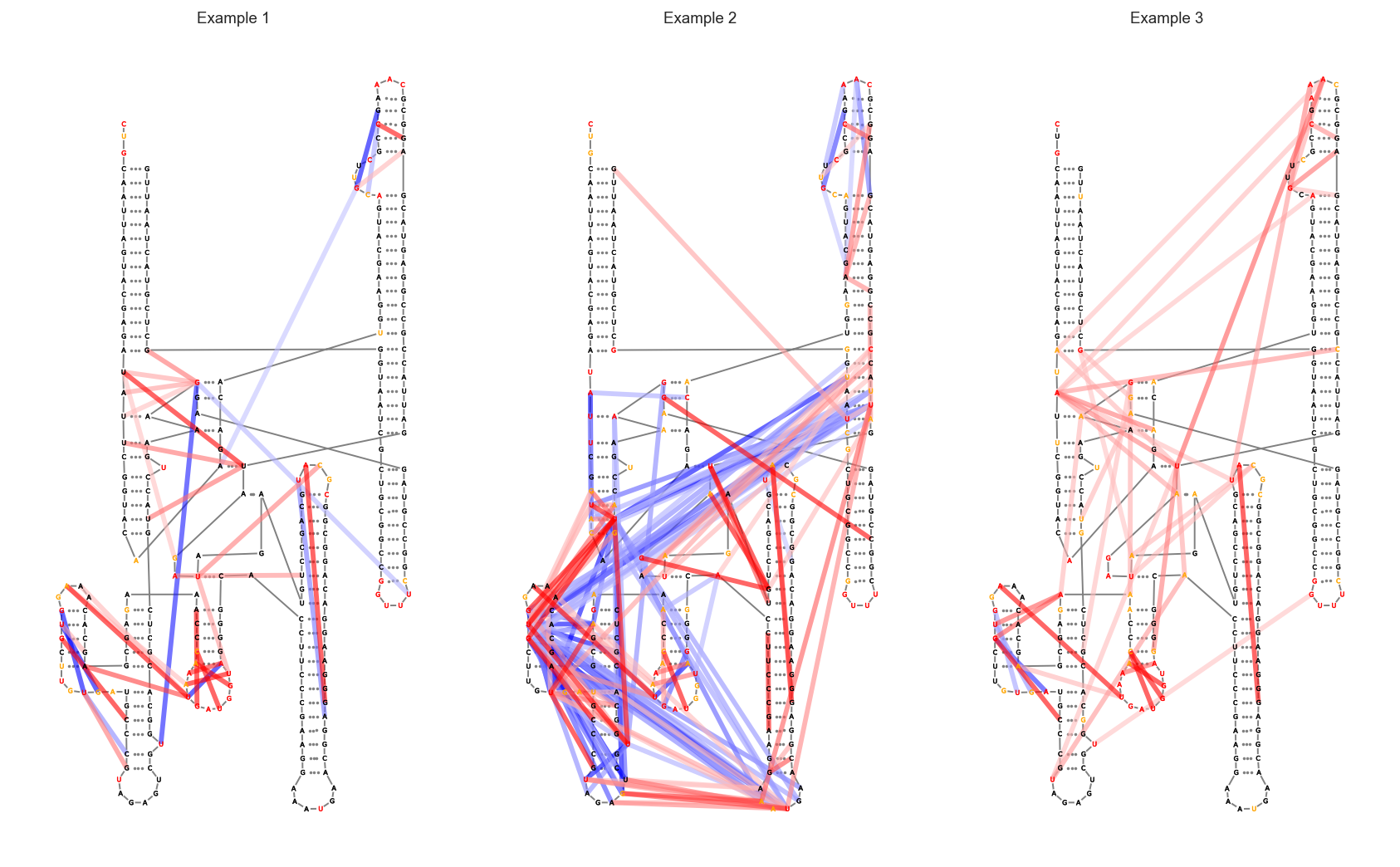

plot = rnav.plot_ss(
samples=[rnasep_1, rnasep_2, rnasep_3],
structure="ss_pdb",
profile="shapemap",
interactions="ringmap",

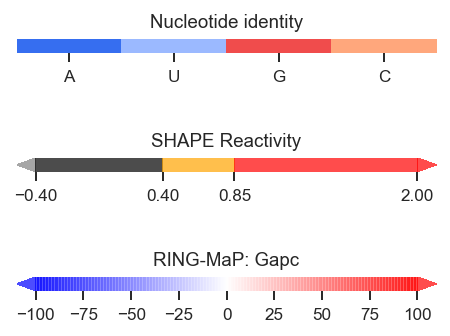

colors={"sequence": "profile"}
)
[2]:
help(rnav.plot_ss)
Help on function plot_ss in module rnavigate.plotting_functions:
plot_ss(samples, structure, profile=None, annotations=None, interactions=None, interactions2=None, labels=None, colors=None, nt_ticks=None, bp_style='dotted', colorbars=True, plot_kwargs=None)
Generates a multipanel secondary structure drawing with optional
coloring by per-nucleotide data and display of inter-nucleotide data and/or
sequence annotations. Each plot may display a unique sample and/or
inter-nucleotide data filtering scheme.
Parameters
----------
samples : list of rnavigate Samples
samples used to retrieve data
structure : data keyword string or data object
secondary structure to plot as arcs
All data are mapped to this sequence before plotting
profile : data keyword string or data object, defaults to None
Profile used for coloring if "profile" used in colors dictionary
annotations : list of data keyword strings or data objects, defaults to []
Annotations used to highlight regions or sites of interest
interactions : one of the formats below, defaults to None
format 1 (data or data keyword)
Interactions to plot on secondary structure, no filtering
format 2 (dictionary)
e.g. {"interactions": format 1}
additional filtering options can be added to the dictionary
format 3 (list of format 2 dictionaries)
This format allows multiple filtering schemes to be applied,
each will be plotted on a seperate axis
interactions2 : one of the formats below, defaults to None
format 1 (data or data keyword)
Interactions to plot on secondary structure, no filtering
format 2 (dictionary)
e.g. {"interactions": format 1}
additional filtering options can be added to the dictionary
labels : list of strings, defaults to sample.sample for each sample
list containing Labels to be used in plot legends
Defaults to sample.sample for each sample
colors : dictionary, optional
a dictionary of element: value pairs that determines how colors
will be applied to each plot element and if that element is plotted
only the elements you wish to change need to be included
value options and what the colors represent:
None: don"t plot this elelement
"sequence": nucleotide identity
"position": position in sequence
"annotations": sequence annotations
"profile": per-nucleotide data from profile
profile argument must be provided
"structure": base-pairing status
matplotlib color: all positions plotted in this color
array of colors: a different color for each position
must be the same length as structure
"sequence" may also use "contrast" which automatically chooses
white or black, which ever contrasts better with "nucleotide"
color
Defaults to {"sequence": None,
"nucleotides": "sequence",
"structure": "grey",
"basepairs": "grey"}
nt_ticks : integer, defaults to None (no labels)
gap between major tick marks
bp_style : "dotted", "line", or "conventional", defaults to "dotted"
"dotted" plots basepairs as a dotted line
"line" plots basepairs as a solid line
"conventional" plots basepairs using Leontis-Westhof conventions
for canonical and wobble pairs ("G-A" plotted as solid dot)
colorbars : bool, defaults to True
Whether to plot color scales for all plot elements
plot_kwargs : dict, defaults to {}
Keyword-arguments passed to matplotlib.pyplot.subplots
Returns
-------
rnavigate.plots.SS plot
object containing matplotlib figure and axes with additional plotting and
file saving methods
